Custom Non-Conforming Die

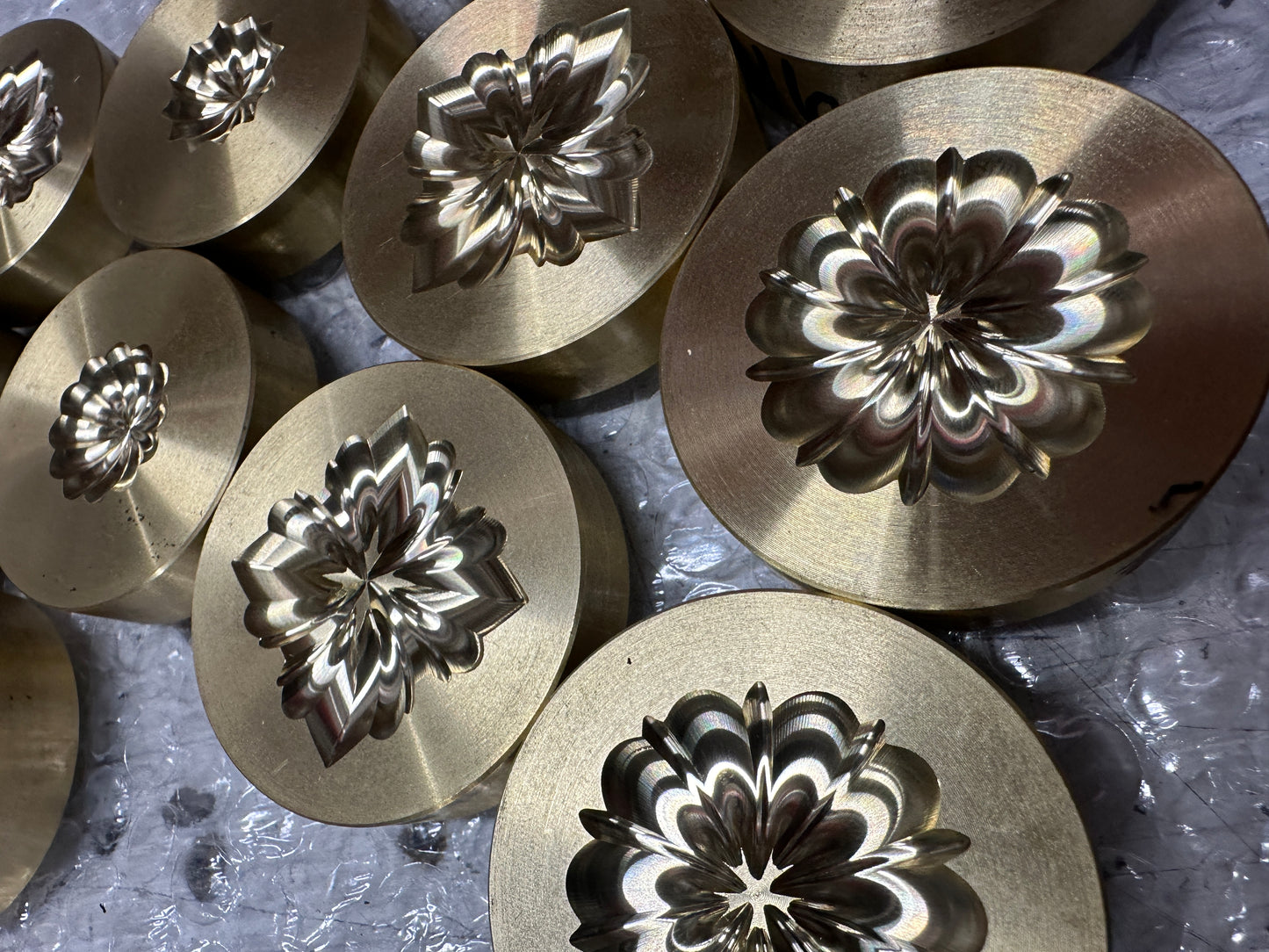

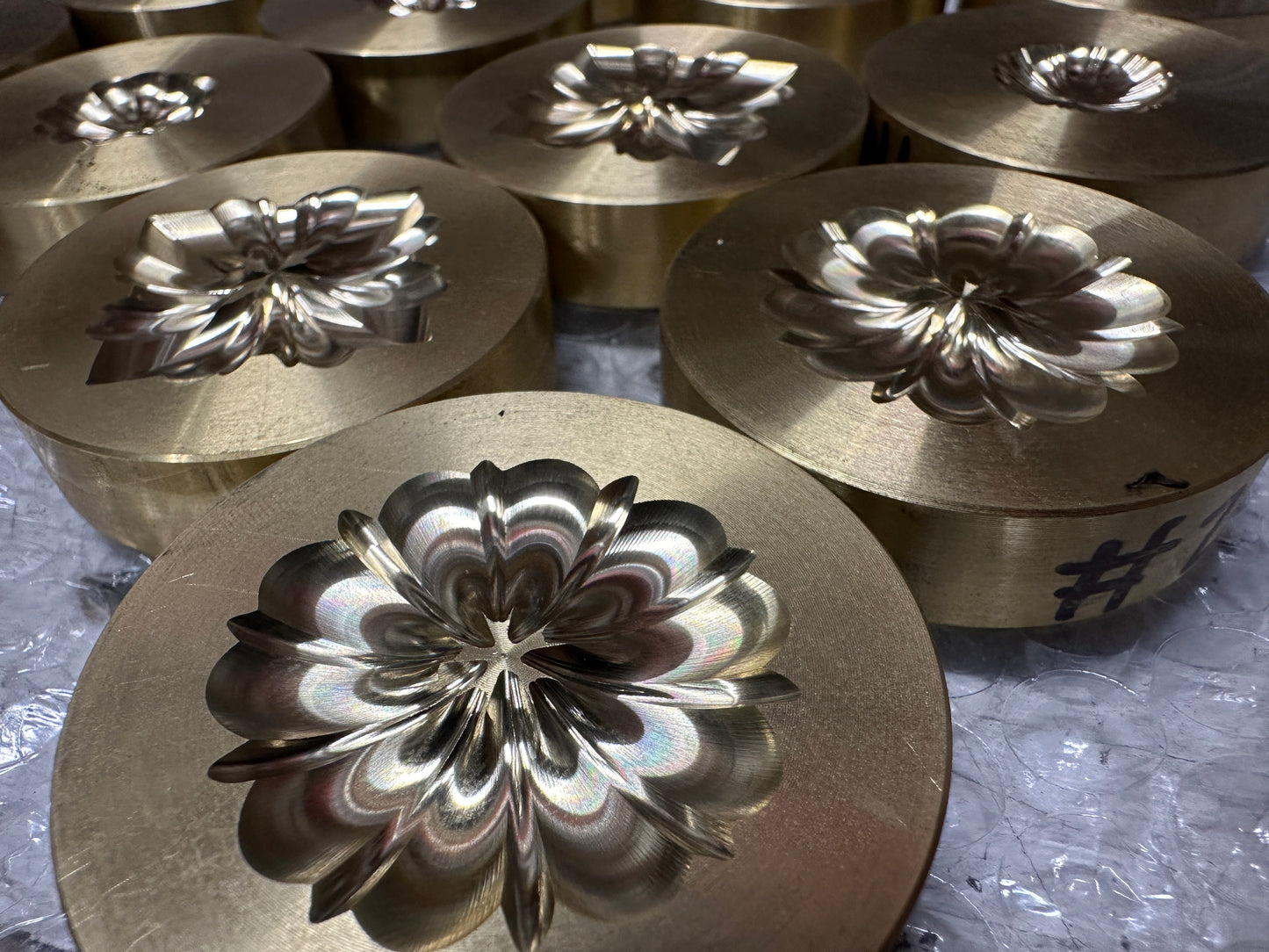

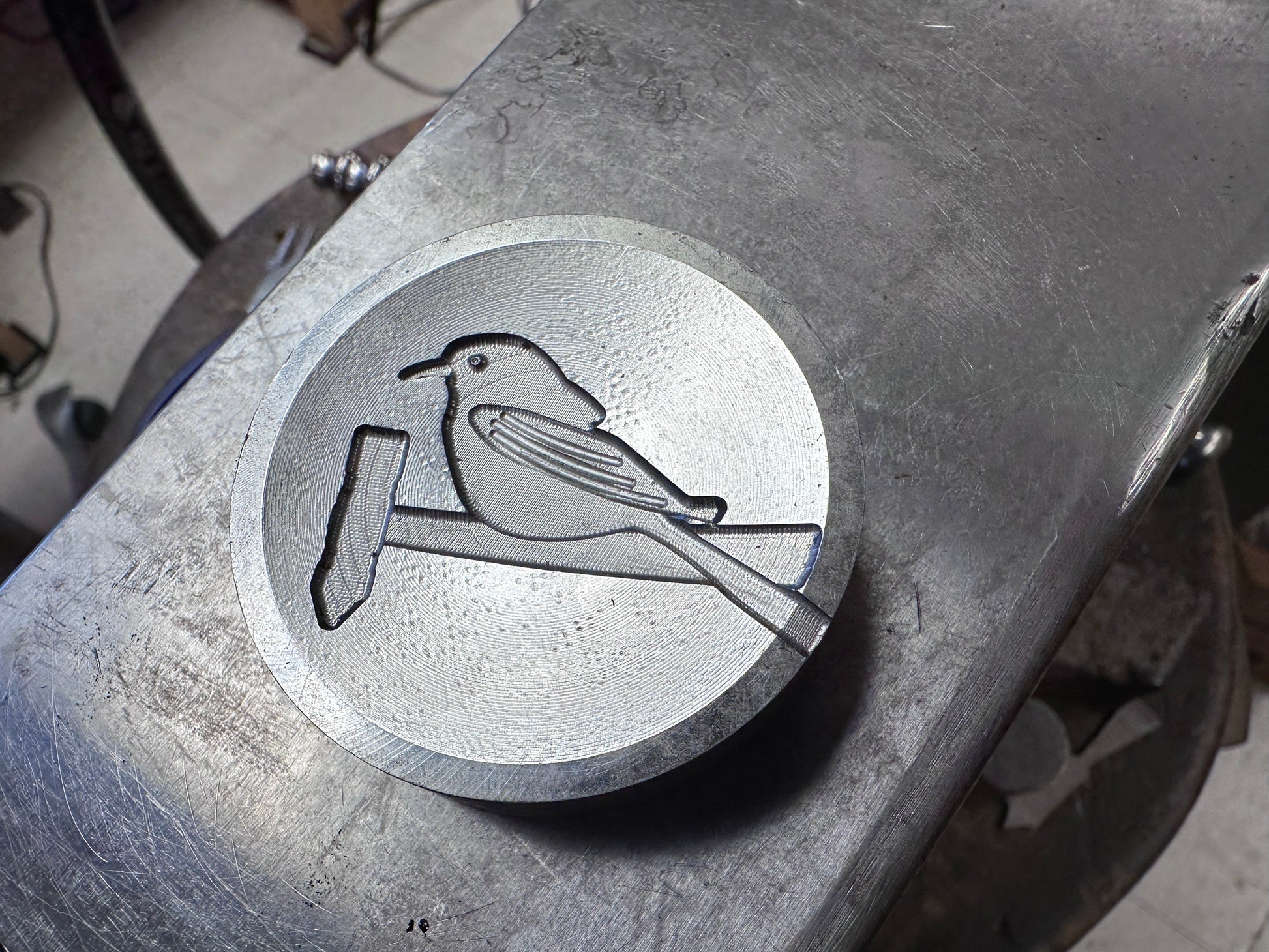

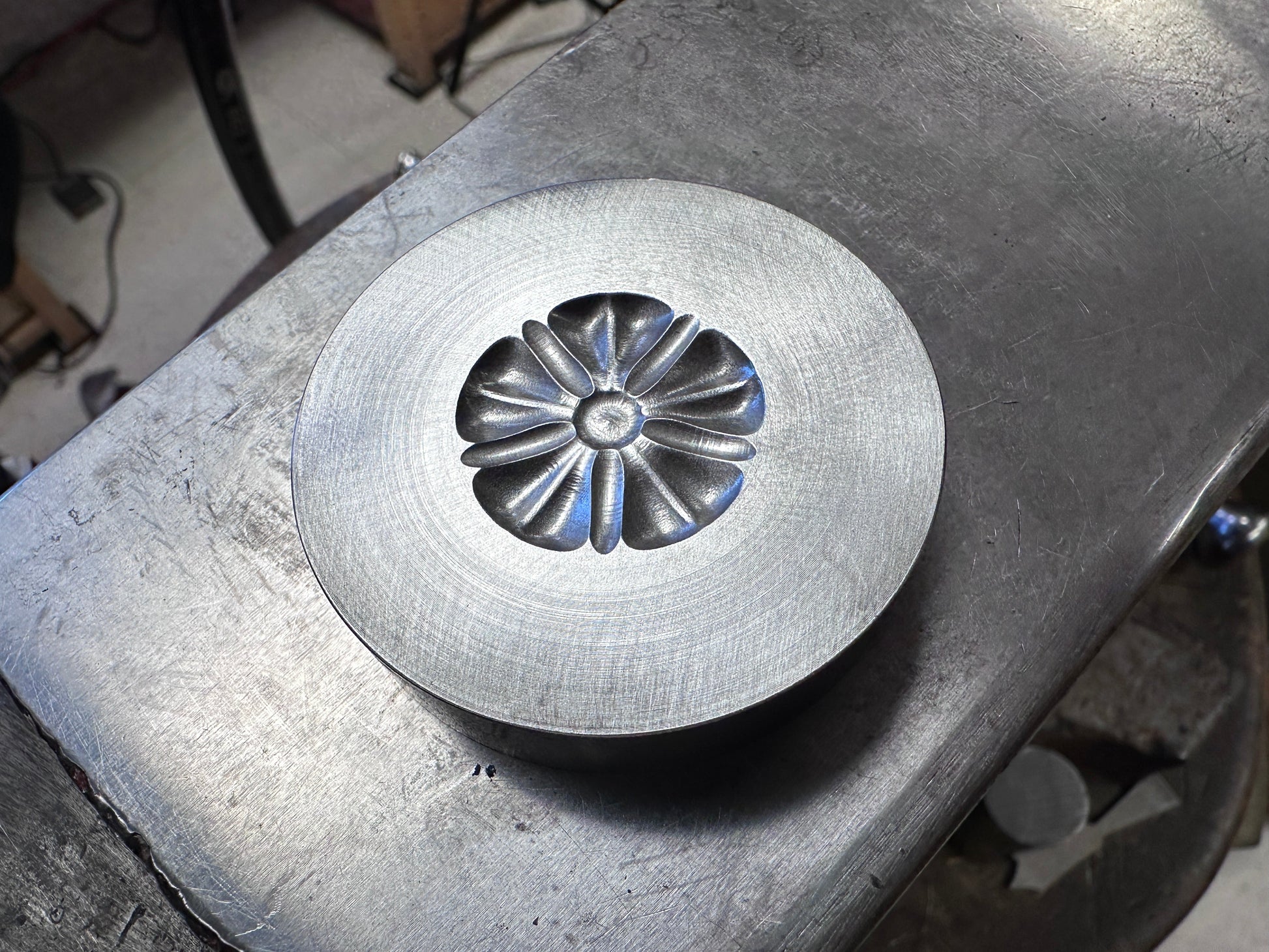

Custom steel or brass die to be used in the High-Pressure Container for creating 3-dimensional forms. Design must fit within a 2" diameter circle. Final Die is 2" diameter.

You must provide a 3D CAD Model (Rhino or STEP preferred) or clean drawing in black and white with both plan and elevation view as well as exact dimensions. If you need CAD work done that will incur an extra charge.

I can also design your die to pair with a Swanstrom disc cutter or special shape cutter as well. Just let me know which exact one you want to use for your design.

If you would like to learn all about Dies click here to read a very thorough paper written by Peter Gilroy and Phil Poirier. You can also learn more about Die Making on our YouTube Channel, click here to watch, or by booking an online class with Peter Gilroy.

Lead time is 4-6 weeks after good CAD or drawings have been submitted.
